PCB Connector-PlugPG-508LC
PG-508LC
5.08mm,300V,10A
| Category | PCB Connector-Plug |
| Model | PG-508LC |

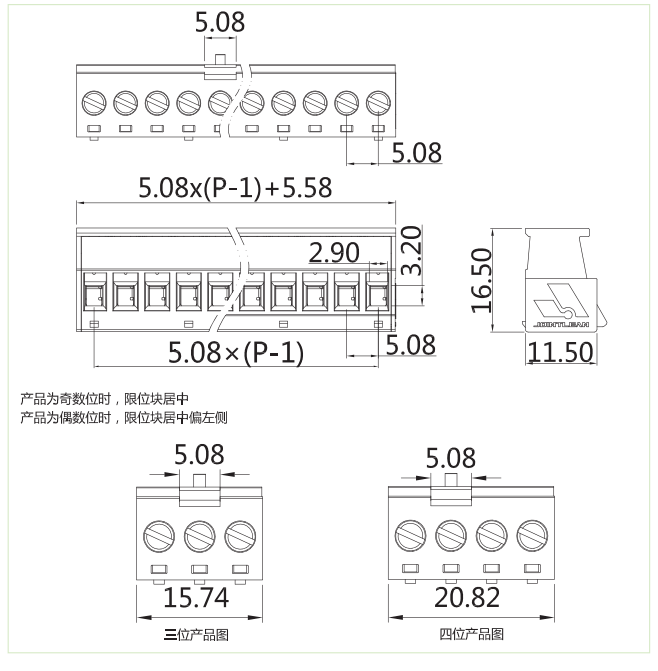

| Pitch | 5.08mm |
| Poles | 02P~20P |
| Plug-in direction | Plug-in direction vertical to the conductor axis |
| Color | Black |
| Pitch[mm] | 5.08 |
| Technical data in accordance with IEC/DIN and VDE | |
| Insulation materialgroup | I |
| Surge voltagecategory/contamination class | III/3 III/2 II/2 |
| Rated voltage[V] | 250 320 400 |
| Rated surge voltage[kV] | 4 4 4 |
| Rated current/Cross section[A]/[mm2] | 12/2.5 |
| Maximum load current/Cross section[A]/[mm2] | 12/2.5 |
| Capacity connection | |
| Rigid/flexible conductor/conductor sizes[mm2]/[mm2]/AWG | 0.2-2.5/0.2-2.5/24-12 |
| Flexible conductors with cold pressing tip 帶/不帶塑料護套 | 0.25-2.5/0.25-2.5 |
| Multiple connection（2 conductors with same cross section） | |
| Rigid/flexible conductor[mm2] | 0.2-1/0.2-1.5 |
| Flexible conductors with cold pressing tip 帶/不帶塑料護套[mm2] | 0.25-1 |
| Flexible conductors with cold pressing tip 帶塑料護套[mm2] | 0.5-1.5 |
| Stripping length[mm] | 7 |
| Internal cylindrical gauge(IEC 60 947-1) | A3 |
| Thread | M3 |
| Torque[Nm] | 0.5-0.6 |
| Insulating material | PA |
| Inflammability class in acc.with UL 94 | V0 |
| Approva ldata(UL/CUL and CSA) | |
| Rated voltage/Rated current/conductor sizes UL/CUL:[V]/[A]/AWG | 300/10/30-12 |
| CSA:[V]/[A]/AWG | 300/10/28-12 |
Jointlean provides samples for user experience
PG-508LC
