Fixed terminal blocksMK5-762

MK5-762

7.62mm,300V,10A

DownloadPDF

Basic Information

Category	Fixed terminal blocks
Model	MK5-762
Pitch	7.62mm
Poles	02P,03P
Plug-in direction	wiring direction parallel to the PCB
Color	Green

MK5-762

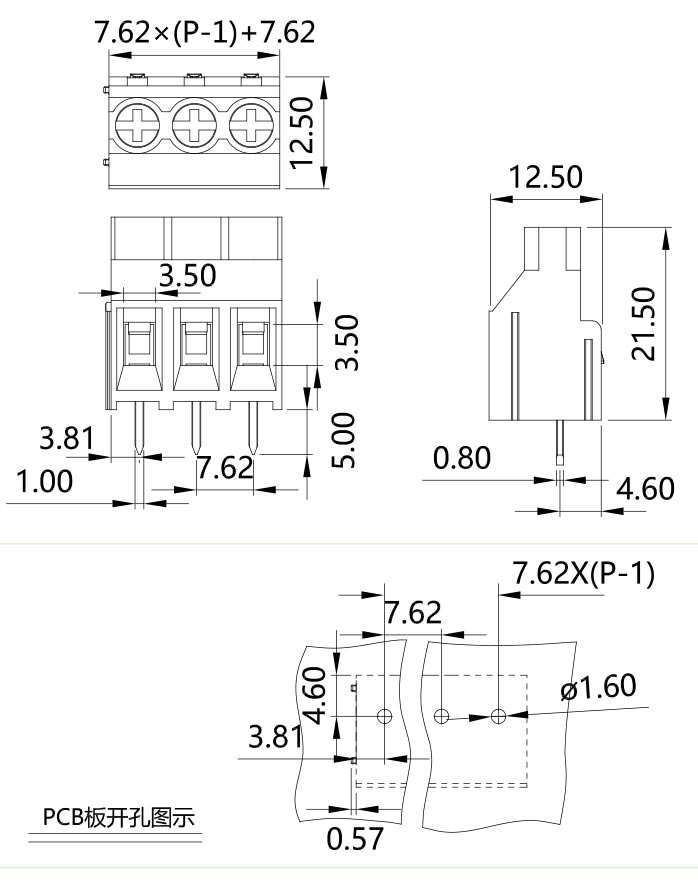

Pitch[mm]	7.62
PCB hole diameter[mm]	1.6
Pin dimensions[mm]x[mm]	0.8x1
Technical data in accordance with IEC/DIN and VDE
Insulation materialgroup	I
Surge voltagecategory/contamination class	III/3 III/2 II/2
Rated voltage[V]	500 630 1000
Rated surge voltage[kV]	6 6 6
Rated current/Cross section[A]/[mm2]	32/4
Maximum load current/Cross section[A]/[mm2]	32/6
Capacity connection
Rigid/flexible conductor/conductor sizes[mm2]/[mm2]/AWG	0.2-6/0.2-4/24-10
Flexible conductors with tubular bare tip/tubular pre-msulated tip[mm2]/[mm2]	0.25-2.5/0.25-4
Multiple connection（2 conductors with same cross section）
Rigid/flexible conductor[mm2]/[mm2]	0.2-1.5/0.2-1.5
Flexible conductor/flexible conductor[mm2]	0.25-0.75
Flexible conductor with TWIN tubular pre-insulated tip[mm2]	0.5-2.5
Stripping length[mm]	8
Internal cylindrical gauge(IEC 60 947-1)	A4
Thread	M3
Torque[Nm]	0.5-0.6
Insulating material	PA
Inflammability class in acc.with UL 94	V0
Approva ldata(UL/CUL and CSA)
Rated voltage/Rated current/conductor sizes UL/CUL:[V]/[A]/AWG	300/10/30-10
CSA:[V]/[A]/AWG	-
