PCB Connector-PlugKPGF-762

KPGF-762

7.62mm,300V,10A

DownloadPDF

Basic Information

Category	PCB Connector-Plug
Model	KPGF-762
Pitch	7.62mm
Poles	02P~12P
Plug-in direction	Plug-in direction parallel to the conductor axis
Color	Green

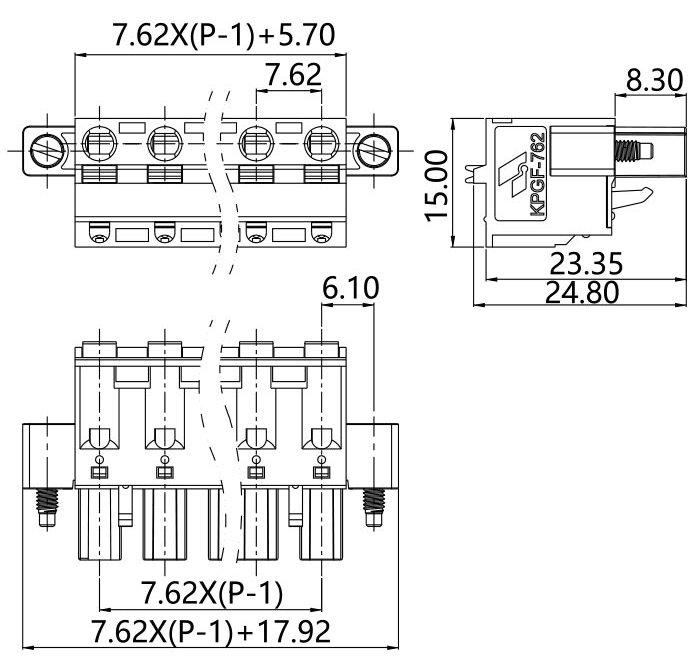

KPGF-762

Pitch[mm]	7.62
Technical data in accordance with IEC/DIN and VDE
Insulation materialgroup	I
Surge voltagecategory/contamination class	III/3 III/2 II/2
Rated voltage[V]	400 630 1000
Rated surge voltage[kV]	6 6 6
Rated current/Cross section[A]/[mm2]	12/2.5
Maximum load current/Cross section[A]/[mm2]	12/2.5
Capacity connection
Rigid/flexible conductor/conductor sizes[mm2]/[mm2]/AWG	0.2-2.5/0.2-2.5/24-12
Flexible conductors with cold pressing tip with/without plastic sleeve	0.25-2.5/0.25-2.5
Multiple connection（2 conductors with same cross section）
Rigid/flexible conductor[mm2]	-
Stranded with ferrule without/with plastic sleeve[mm2]	-
Stranded with ferrule with plastic sleeve[mm2]	0.5-1
Stripping length[mm]	10
Internal cylindrical gauge(IEC 60 947-1)	A2
Thread	-
Torque[Nm]	-
Insulating material	PA
Inflammability class in acc.with UL 94	V0
Approva ldata(UL/CUL and CSA)
Rated voltage/Rated current/conductor sizes UL/CUL:[V]/[A]/AWG	300/10/26-12
CSA:[V]/[A]/AWG	300/12/24-12
