PCB Connector-PlugLPGT-508

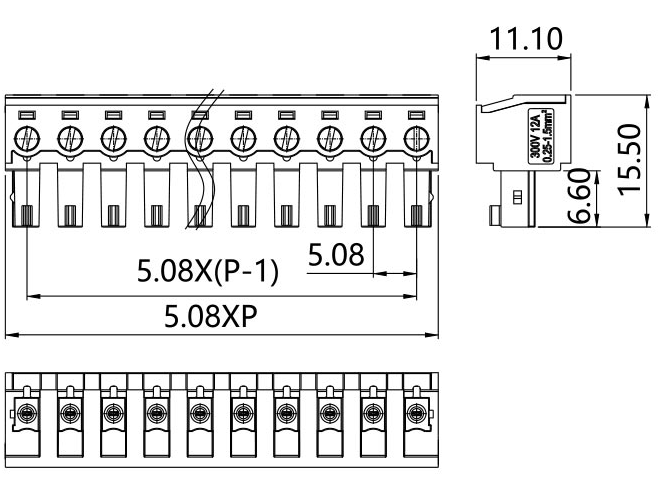

LPGT-508

5.08mm,300V,8A

DownloadPDF

Basic Information

Category	PCB Connector-Plug
Model	LPGT-508
Pitch	5.08mm
Poles	02P~24P
Plug-in direction	Plug-in direction parallel to the conductor axis
Color	Green

LPGT-508

Pitch[mm]	5.08
Technical data in accordance with IEC/DIN and VDE
Insulation materialgroup	I
Surge voltagecategory/contamination class	III/3 III/2 II/2
Rated voltage[V]	250 320 630
Rated surge voltage[kV]	4 4 4
Rated current/Cross section[A]/[mm2]	8/1.5
Maximum load current/Cross section[A]/[mm2]	8/1.5
Capacity connection
Rigid/flexible conductor/conductor sizes[mm2]/[mm2]/AWG	0.08-1.5/0.08-1.5/28-16
Flexible conductors with cold pressing tip with/without plastic sleeve	0.25-1.5/0.25-0.5
Multiple connection（2 conductors with same cross section）
Rigid/flexible conductor[mm2]	0.08-0.5/0.08-0.75
Stranded with ferrule without/with plastic sleeve[mm2]	0.25-0.34
Stranded with ferrule with plastic sleeve[mm2]	0.5
Stripping length[mm]	8
Internal cylindrical gauge(IEC 60 947-1)	A1
Thread	M2
Torque[Nm]	0.22-0.25
Insulating material	PA
Inflammability class in acc.with UL 94	V0
Approva ldata(UL/CUL and CSA)
Rated voltage/Rated current/conductor sizes UL/CUL:[V]/[A]/AWG	300/8/30-14
CSA:[V]/[A]/AWG	300/8/28-16

PGF-508
